Description

Specifications

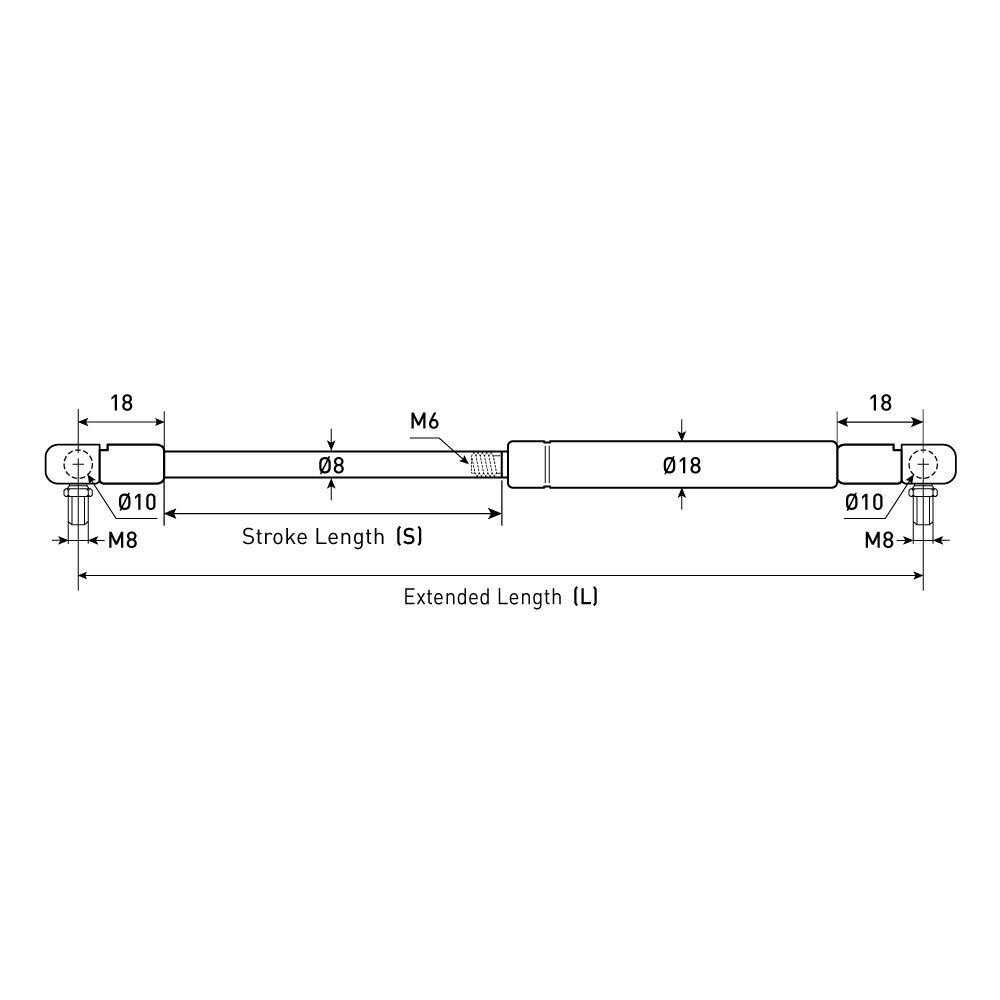

PRODUCT CODE Body Length (mm) Compressed Length (mm) Extended Length (mm) Stroke Length (mm) Thread / Pitch Pressure / Force (n) Select
18-500-100 255 290 500 210 M6 x 1.0 100 Select
18-500-150 255 290 500 210 M6 x 1.0 150 Select
18-500-200 255 290 500 210 M6 x 1.0 200 Select
18-500-250 255 290 500 210 M6 x 1.0 250 Select
18-500-300 255 290 500 210 M6 x 1.0 300 Select
18-500-350 255 290 500 210 M6 x 1.0 350 Select
18-500-400 255 290 500 210 M6 x 1.0 400 Select
18-500-450 255 290 500 210 M6 x 1.0 450 Select
18-500-500 255 290 500 210 M6 x 1.0 500 Select
18-500-50 255 290 500 210 M6 x 1.0 50 Selected
18-500-550 255 290 500 210 M6 x 1.0 550 Select
18-500-600 255 290 500 210 M6 x 1.0 600 Select
18-500-650 255 290 500 210 M6 x 1.0 650 Select
18-500-700 255 290 500 210 M6 x 1.0 700 Select
18-500-750 255 290 500 210 M6 x 1.0 750 Select
