Description

Specifications

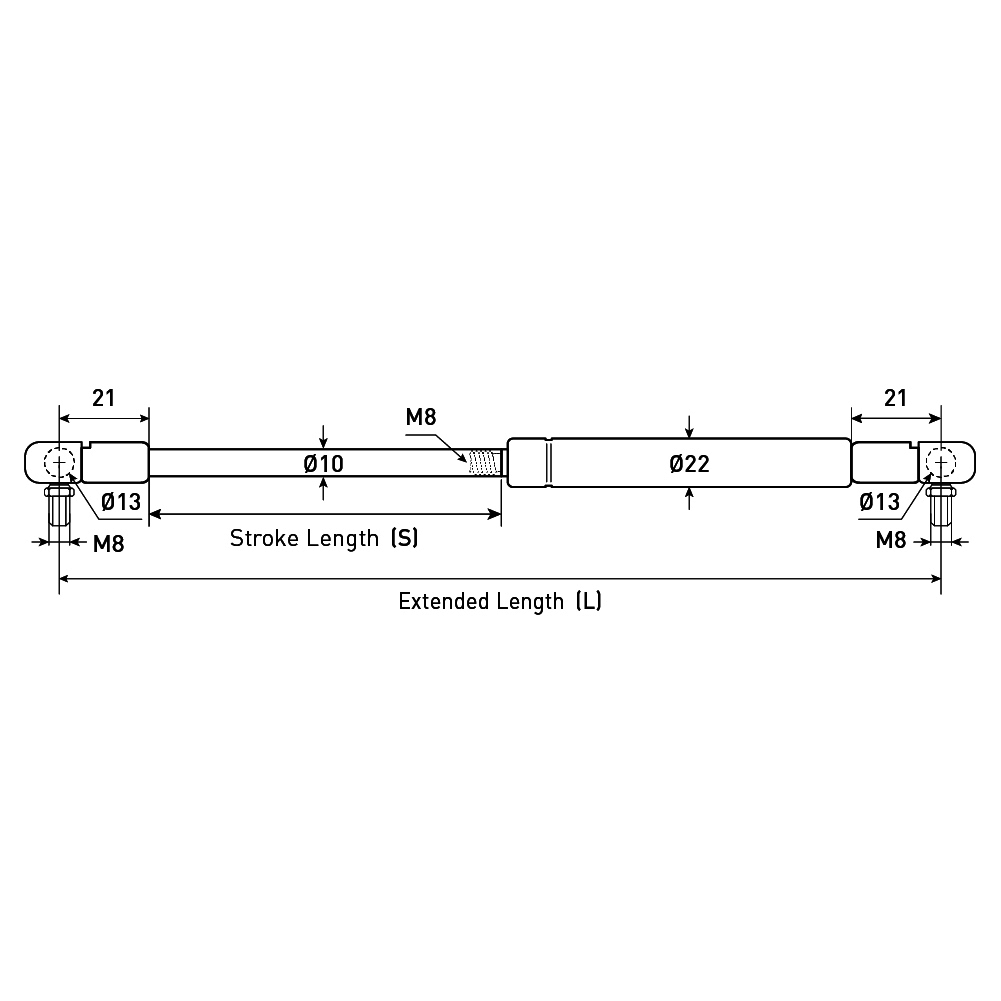

PRODUCT CODE Body Length (mm) Compressed Length (mm) Extended Length (mm) Stroke Length (mm) Thread / Pitch Pressure / Force (n) Select
22-900-1000 450 495 900 410 M8 x 1.25 1000 Select
22-900-100 450 495 900 410 M8 x 1.25 100 Select
22-900-1100 450 495 900 410 M8 x 1.25 1100 Select
22-900-1200 450 495 900 410 M8 x 1.25 1200 Select
22-900-200 450 495 900 410 M8 x 1.25 200 Select
22-900-300 450 495 900 410 M8 x 1.25 300 Select
22-900-400 450 495 900 410 M8 x 1.25 400 Select
22-900-500 450 495 900 410 M8 x 1.25 500 Select
22-900-50 450 495 900 410 M8 x 1.25 50 Selected
22-900-600 450 495 900 410 M8 x 1.25 600 Select
22-900-700 450 495 900 410 M8 x 1.25 700 Select
22-900-800 450 495 900 410 M8 x 1.25 800 Select
22-900-900 450 495 900 410 M8 x 1.25 900 Select
